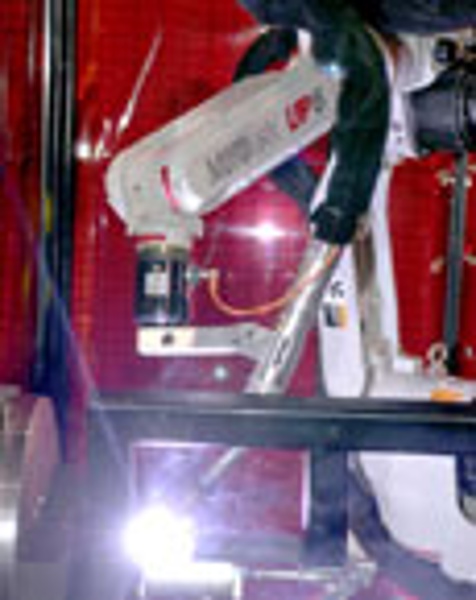

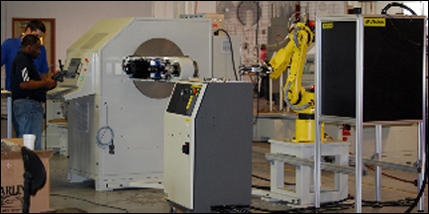

| The Marlin Steel Fanuc Weld Cell is a power-house of arc welding robots, controllers, an HMI, tooling, positioning ferris wheel and a complete safety environment.
View some close-up images of the Fanuc Weld Cell.
The Fanuc Weld Cell is one of the many Marlin Robots that enable us to deliver on-time, precision-manufactured welded products.
Contact us today to order your custom-manufactured welded products. |
|
Spring 2011 -
Marlin Steel's Newest Robot - Trumpf Press Brake
Summer 2010 -
Marlin Steel's Newest Robot - Fastest Three Dimensional CNC Bender
Summer 2010 -
Precision Sheet Metal Fabrication - CNC Bender with Integrated Robot
Summer 2010 - Marlin Steel's Newest Robot - Fastest Precision Sheet Metal Punch
Summer 2010 - Precision Sheet Metal Fabrication - 900 Strokes per minute with 0.004" tolerance
Marlin Steel Wire Robots In Action!
Wire Bending Robot - RoboMac 206 CNC
Wire Bending Robot - RoboMac 310 CNC

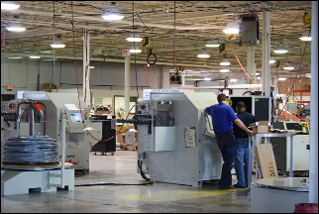

Summer 2009 - New Robot
Summer 2009 - New Robot
Quad Arm Coordination Robots

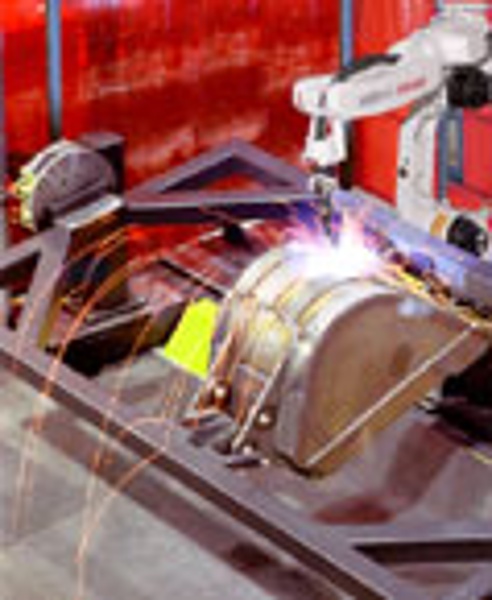

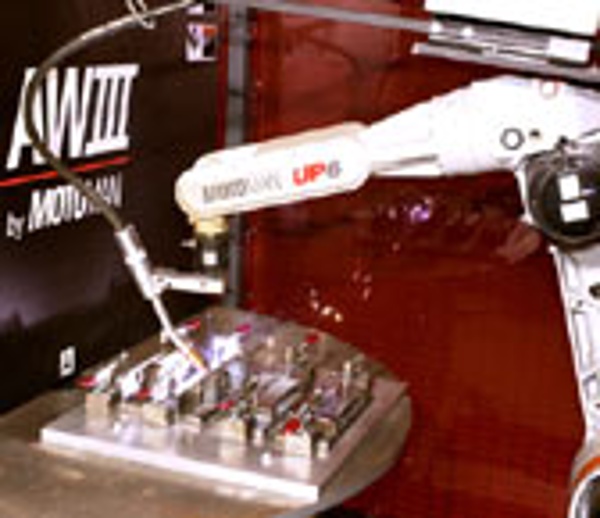

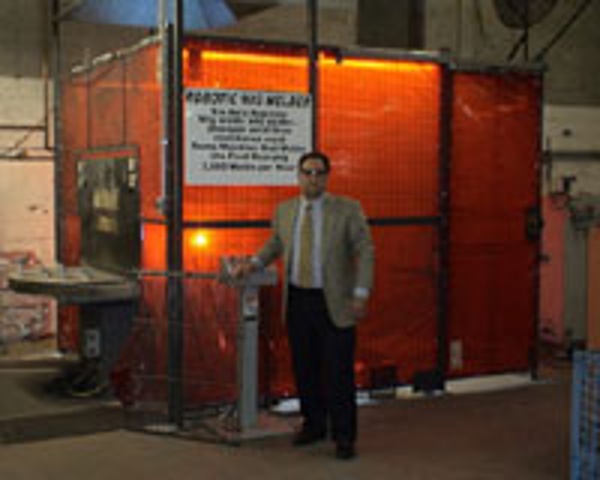

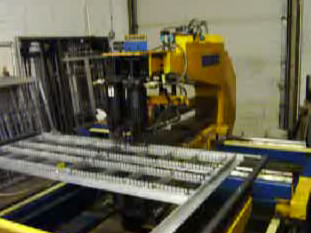

Welding Robot

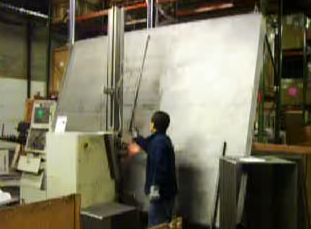

Two Dimensional Wire Forming Robot
Three Dimensional Wire Forming Robot
How do we make precise fixtures?
CNC Router - Click one of the 3 robot images below to watch it make a fixture for a Nissan Part:
CNC Robot 1
CNC Robot 2
CNC Robot 3
|
Industrial Robot Features
• Six axes of motion.
• Designed for a wide variety of spot welding and handling applications.
• Durable cycloidal wrist design
• Fully functional with MRC/ERC Controller.
- Robot used for multiple automation factory applications.
|
Model
|
MOTOMAN-SK6
|
|
Structure
|
Vertically Articulated
Robot
|
|
Controlled Axis
|
6 Degrees of
Freedom
|
|
Payload
|
6 kg
|
|
Repetitive Positioning Accuracy *1
|
±0.1mm
|
|
Reach
|
1322mm
|
|
Motion Range
|
S-Axis
|
340°
|
|
L-Axis
|
240°
|
|
U-Axis
|
270°
|
|
R-Axis
|
360°
|
|
B-Axis
|
270°
|
|
T-Axis
|
400°
|
|
Max. Speed
|
S-Axis
|
1.92 rad/s,
110°/s
|
|
L-Axis
|
1.57 rad/s,
90°/s
|
|
U-Axis
|
1.92 rad/s,
110°/s
|
|
R-Axis
|
4.19 rad/s,
240°/s
|
|
B-Axis
|
3.14 rad/s,
180°/s
|
|
T-Axis
|
6.98 rad/s,
400°/s
|
|
Allowable Moment
|
R-Axis
|
11.8N·m
|
|
B-Axis
|
9.81N·m
|
|
T-Axis
|
5.88N·m
|
|
Allowable Inertia
(GD2/4)
|
R-Axis
|
0.23kg·m2
|
|
B-Axis
|
0.17kg·m2
|
|
T-Axis
|
0.06kg·m2
|
|
Approx. Mass
|
180kg
|
|
Ambient Condition
|
Temperature
|
0 to +45°C
|
|
Humidity
|
20 to 80%RH
(non-condensing)
|
|
Vibration
|
4.9m/s2 or
less
|
|
Power Capacity *2
|
3.5kVA
|
|
*1 Conforms to JIS B8432
*2 Power supply varies in accordance with applications and motion patterns
|
|

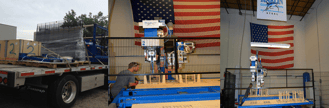

July 20, 2009 Installing the brand new robot at Marlin
 |
 |

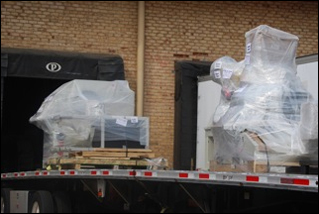

| On the truck from USA MFG |

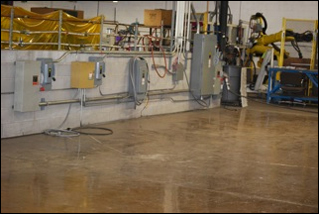

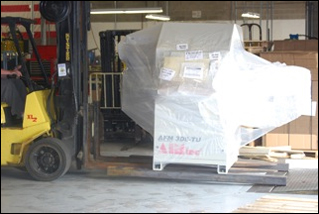

Floor is clean and ready for new robot |
 |
 |

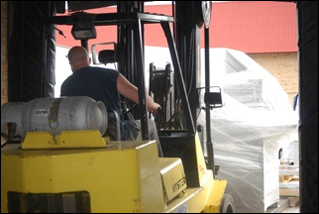

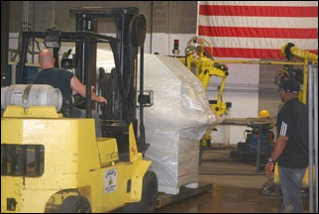

| 10,000 Pound robot lifted from truck |
Robot moved from truck to location on floor |
 |
 |
| Robot placed gently to its new home |

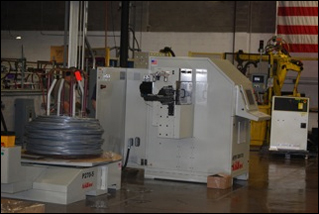

Robot in place — Time to connect to power
and start making parts |
|
| |
|
)
)
)
)
)
)
)
