Data Center Cable Management & Infrastructure

Understanding Data Center Infrastructure Standards

Modern data centers operate under strict design requirements. These are just some of the standards that define everything from proper pathway specifications to thermal management protocols:

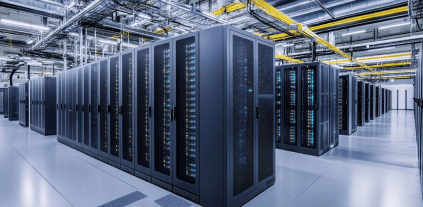

ANSI/TIA-942-C

Specifies minimum requirements for data center infrastructure, including those for bend radius, routing, and separation of power and telecommunications cabling. The 2024 Revision C addresses AI and edge computing so that cable trays meet the specified Rated-1 through Rated-4 redundancy level.

NEC Article 392

Governs electrical cable tray installations in the U.S. It mandates specific fill calculations and grounding methods to prevent heat buildup and ensure compliance during electrical inspections.

ASHRAE TC 9.9

Provides thermal guidelines for temperature and humidity. Effective cable management systems are vital here to maintain the clear airflow paths required for both air and liquid cooling environments.

NEMA VE 1

Establishes design, construction, testing, and performance requirements for metal cable tray systems. It helps engineers verify load-bearing performance based on cable weight and span length.

These standards work together to ensure the physical infrastructure reliably supports the intended IT load.

The Problem With Traditional Cable Ladders

Traditional steel cable ladders no longer represent best practice for modern high-density data center environments. These systems are often limited to linear, two-dimensional routing that lacks the vertical containment required for greater cable volumes. Because ladders typically feature wide rung spacing of 9 to 12 inches, they provide insufficient support, increasing the risk of cable deformation and performance degradation.

Furthermore, because cable ladders lack built-in containment, cables must be manually bundled and secured to adjacent structures, significantly increasing labor costs and reducing facility adaptability. Without the necessary sweeping-radius transitions or factory-engineered cable dropouts, traditional ladders often struggle to maintain manufacturer-required bend radii at egress points, potentially compromising mission-critical cable integrity.

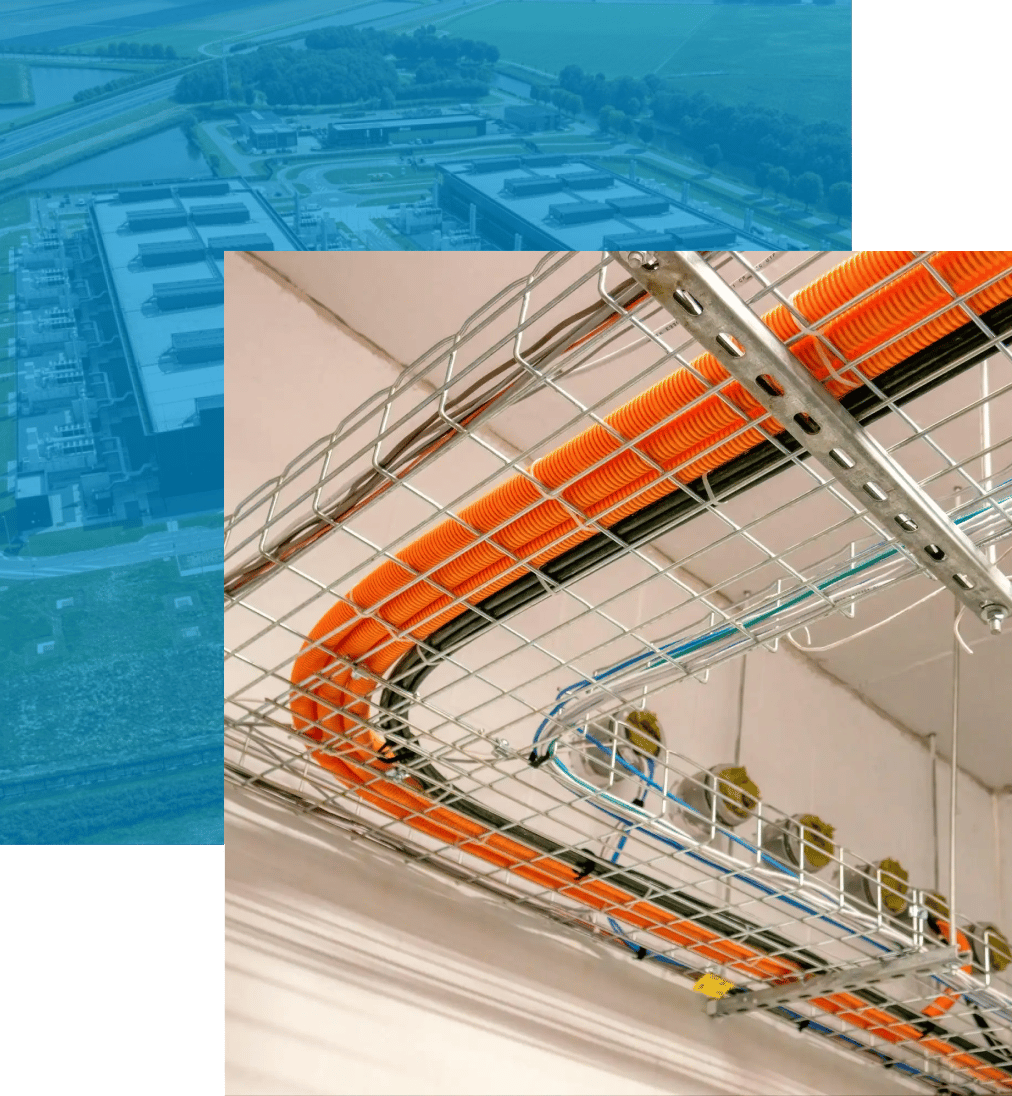

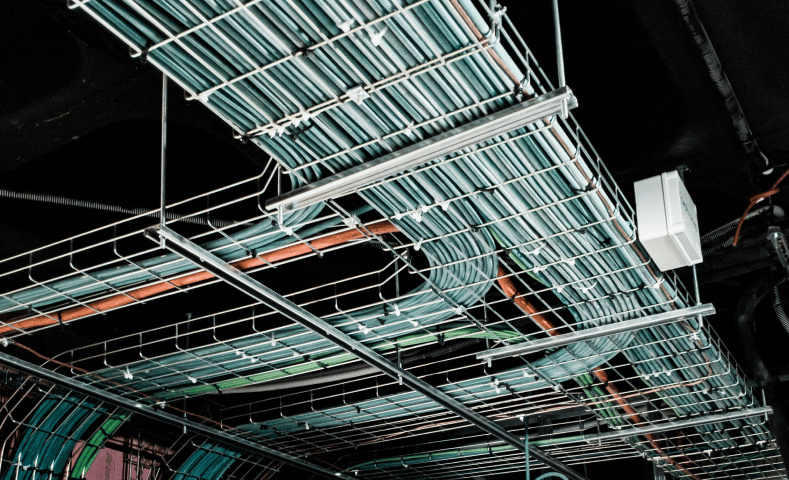

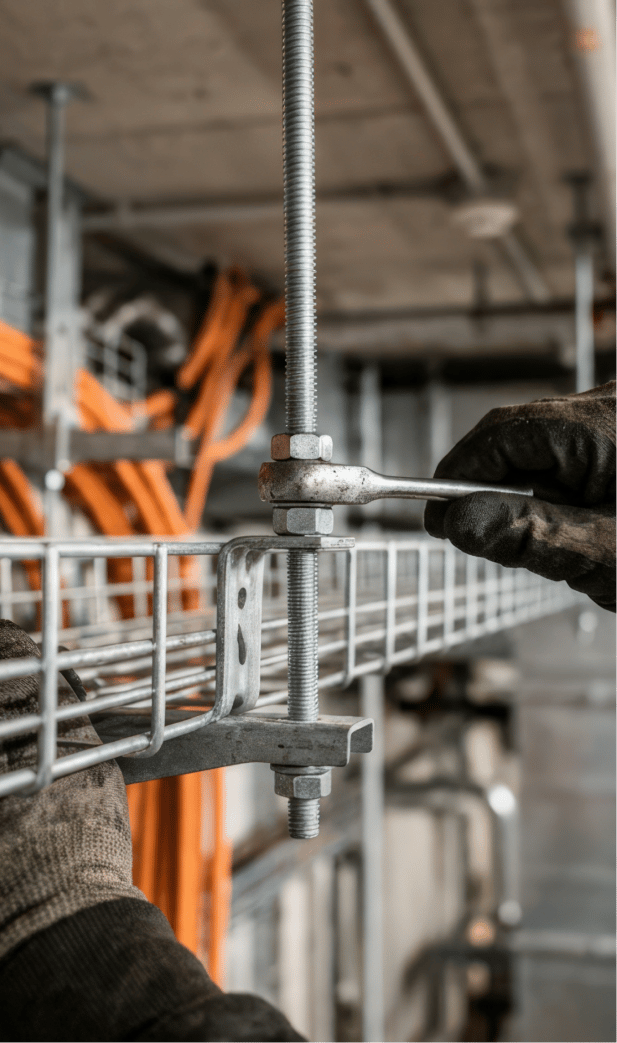

Wire Mesh Cable Trays: Open Architecture for High-Density Environments

Unlike solid-bottom or ladder cable management racks, wire mesh cable trays feature an open construction that allows continuous airflow pathways around cable bundles. This design is critical in high-density cable routing where airflow restrictions impact cooling performance. While enclosed trays can trap heat and compromise performance, wire mesh cable trays help cable bundles shed heat efficiently and reduce the energy load on CRAC units.

The mesh design also minimizes weight compared to solid alternatives. This lighter infrastructure simplifies structural supports, which is vital for retrofit projects with limited design flexibility. Wire mesh cable trays are also easier to install and allow for extensions, new cable drops, and rerouting without dismantling the entire run. When facility layouts change, wire basket trays adapt quickly to reduce downtime.

At Marlin Steel, we manufacture wire mesh cable trays in various configurations to suit specific data center requirements. Our engineering team specifies the grid density of each wire basket tray based on cable types and span lengths to prevent sagging while maximizing airflow. Using advanced IDEAL welding and IP Automation wire-bending equipment, we achieve strong bonds and precise bends with exceptional repeatability.

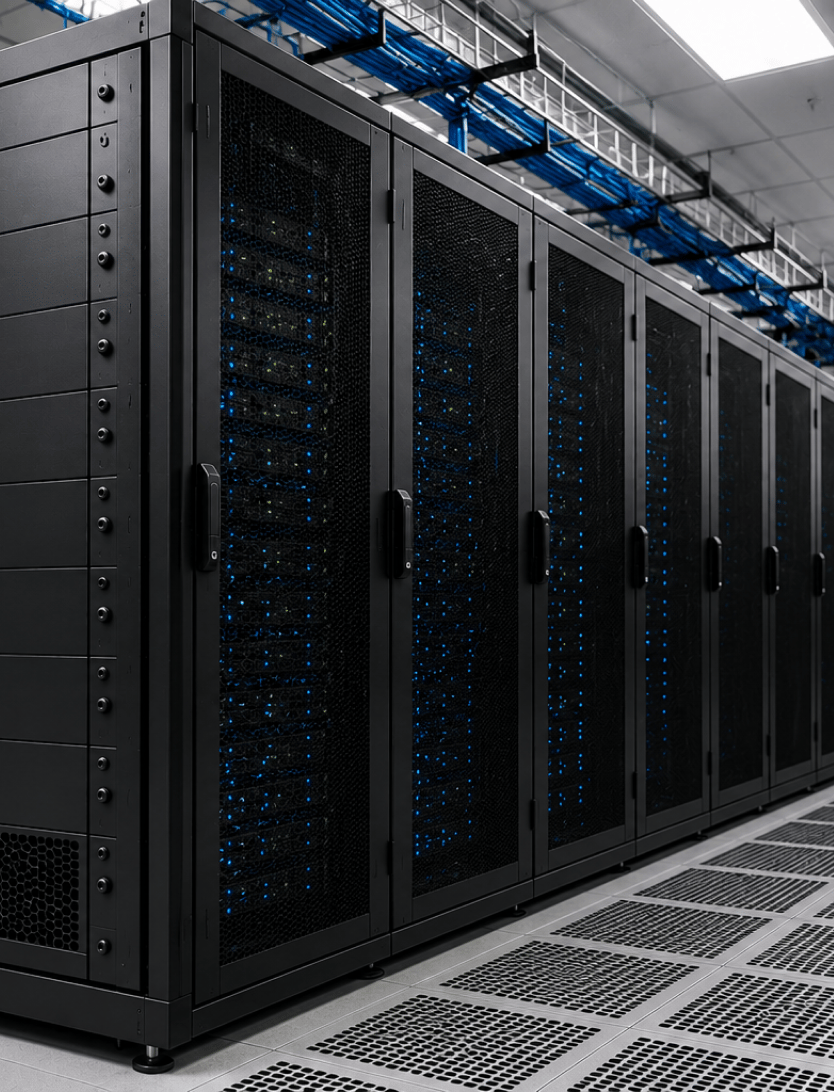

Rack Blanking Panels for Hot Aisle/Cold Aisle Containment

Hot aisle containment systems physically isolate server exhaust air to prevent it from mixing with cool supply air. Without this separation, hot exhaust recirculates into cold aisles, causing temperature spikes and cooling inefficiency. Implementing a physical barrier provides several technical benefits:

Reduces cooling energy consumption

Eliminates hot spots in high-density zones

Increases return air temperatures for better cooling coil efficiency

Blanking panels cover unused rack space so that cool air follows the intended path through the equipment. With precision metal fabrication capabilities, Marlin Steel manufactures tight-tolerance hot aisle containment and rack blanking panels that integrate seamlessly into server rack enclosures to prevent hot air recirculation and optimize cooling efficiency.

We operate TRUMPF TruLaser 3000 laser cutting systems to deliver tight-tolerance, high-speed fabrication for rack blanking panels and other data center infrastructure applications. These systems produce clean-edge, burr-minimal components for prototypes to high volumes, supporting hyperscale and enterprise data center buildouts.

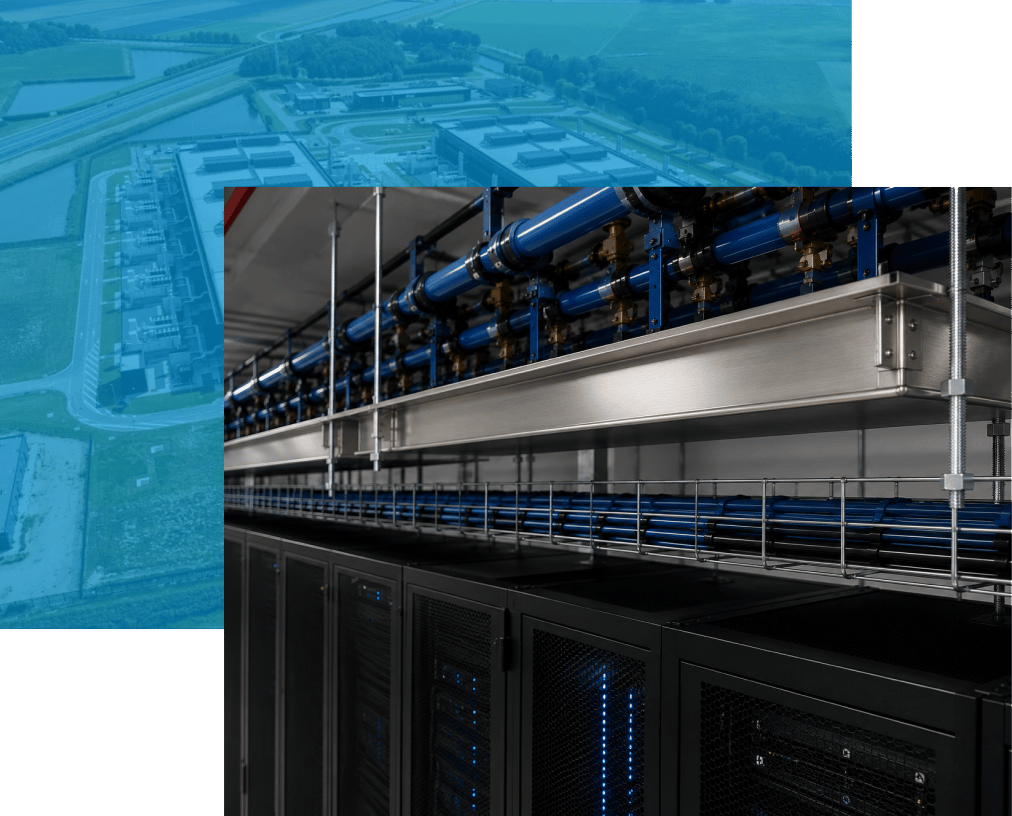

Custom Liquid Cooling Drip Pans

As AI and hyperscale data centers increasingly rely on liquid cooling systems, the risk of coolant leaks damaging expensive equipment grows significantly. Marlin Steel manufactures custom drip pans and containment trays designed to sit above server racks, around CDUs, manifolds, and cooling connection points — catching leaks before they reach critical infrastructure.

Beyond drip pans, Marlin also produces wire mesh cable trays and support infrastructure that work alongside liquid cooling systems to keep power and data distribution organized in high-density environments. Everything is fabricated from stainless or powder-coated steel using laser cutting, TIG welding, and precision press brake forming.

All solutions are custom-engineered, made in the USA, and built for fast turnaround — from single prototypes to full production-scale orders for large facilities.

Wire Basket Tray Accessories and Hardware

A complete cable tray system requires more than the tray itself. Marlin Steel manufactures and sources a full range of compatible accessories and hardware to support proper installation, code-compliant grounding, and long-term serviceability:

Mounting and support hardware

More than 100 million in available manufacturing capacity and advanced production capabilities, including full support for the latest 800V cable tray requirements.

Splice and connection hardware

OSHA-compliant manufacturing with a documented history of zero lost-time incidents, so your project stays on schedule and your supply chain stays clean.

Cable management accessories

Our engineers work directly with your team to size, configure, and spec containment solutions around your existing rack layouts and cooling infrastructure.

All hardware is available in zinc plated, black powder coat, and stainless steel finishes to match the primary tray specification.

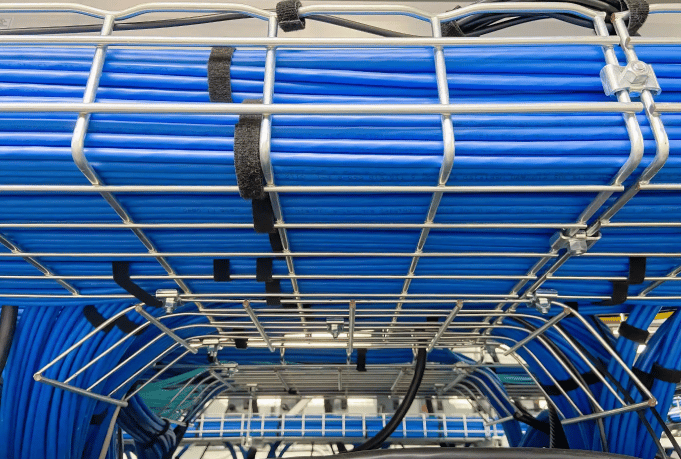

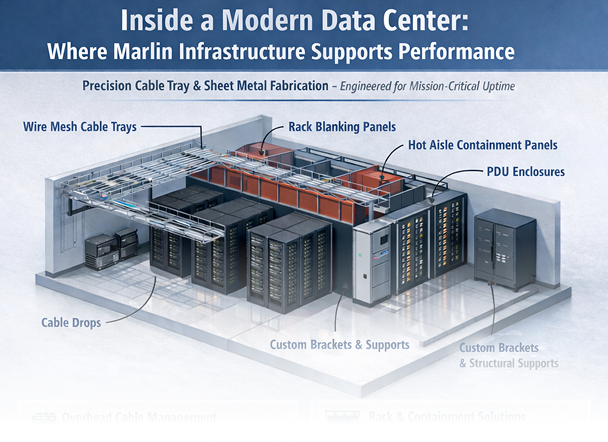

Other Data Center Infrastructure Components

In addition to wire mesh cable trays and rack blanking panels, Marlin Steel manufactures a comprehensive suite of precision-engineered sheet metal components designed to optimize airflow, equipment mounting, and structural integrity:

PDU and busway enclosures
Cable runway brackets and tray transition supports
Equipment structural supports and mounting brackets
Liquid cooling manifold brackets
Retrofit hardware for facility upgrades
Secure cage panels and partitions

Our Materials: Carbon Steel, Stainless Steel, and Aluminum

Marlin Steel utilizes a variety of high-quality metals and finishes to meet the rigorous structural and environmental demands of data center infrastructure. Each material is selected based on its specific performance characteristics:

304 stainless steel

Often considered the industry standard for data centers, this material gives stainless steel cable trays and sheet metal an optimal balance of structural strength and corrosion resistance for most indoor applications.

316 stainless steel

For facilities in high-salinity coastal areas or chemically corrosive environments, Type 316 gives stainless steel cable trays and sheet metal the highest level of protection against oxidation and degradation.

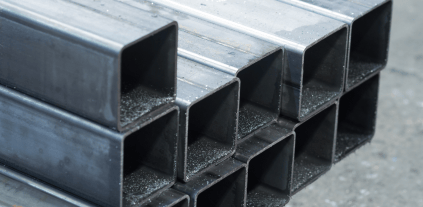

Carbon steel

A cost-effective solution for controlled, climate-stable environments, carbon steel is typically finished with zinc plating or powder coating to provide essential durability and an aesthetic finish.

Aluminum

Utilized for specialized components where a high strength-to-weight ratio is required to minimize the load on structural supports.

All steel is 100% U.S.-sourced, ensuring consistent material purity and full traceability for every cable tray, rack blanking panel, or other component.

Material & Finish Selection Based on Environmental Considerations

Material selection requires balancing initial costs with lifecycle performance. While powder-coated carbon steel suits climate-controlled white spaces, underfloor plenums with higher humidity require more robust finishes. We recommend hot-dip galvanized steel or stainless steel for sustained service life in these demanding zones. Additionally, projects in seismic zones receive specialized engineering support, including custom bracing designs and load calculations.

Quality Engineered Quick®: Manufacturing Standards and Compliance

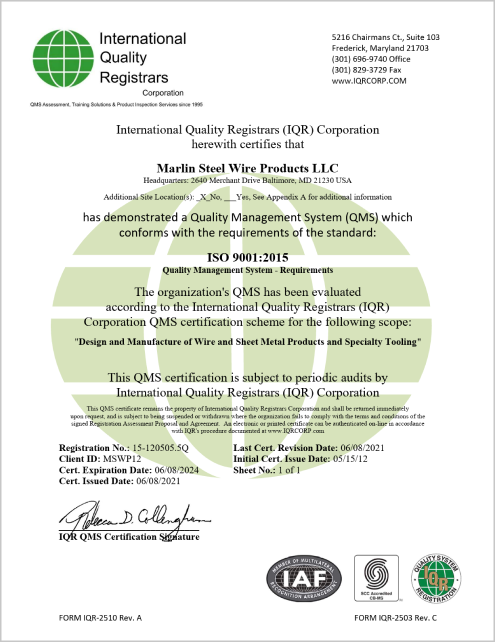

Our ISO 9001:2015 certification covers all manufacturing operations, verifying consistent processes from design through final inspection. Quality control happens at every stage of production.

Incoming material verification confirms that our steel meets specified quality requirements. In-process inspections catch potential defects before they propagate. Final documentation supports project closeout and facility certification requirements.

Learn More About Marlin Steel’s Data Center Infrastructure Solutions

Data center infrastructure projects involve complex technical requirements and significant budgetary commitments, where component selection directly impacts both installation speed and long-term reliability. Because construction operates under aggressive schedules, Marlin Steel collaborates closely with project teams and EPC contractors to deliver precision solutions that fit correctly the first time.

Our engineers are ready to discuss your specific needs for containment and cable management systems, whether you require a custom-engineered solution or a standard high-volume production run. With 100% U.S. manufacturing and Quality Engineered Quick® capabilities, we have the capacity to support your timeline so that your facility meets mission-critical standards.
